THEMIS TS-1000

HIGH PERFORMANCE PRESENTATION SCANNER

High-performance imaging technology

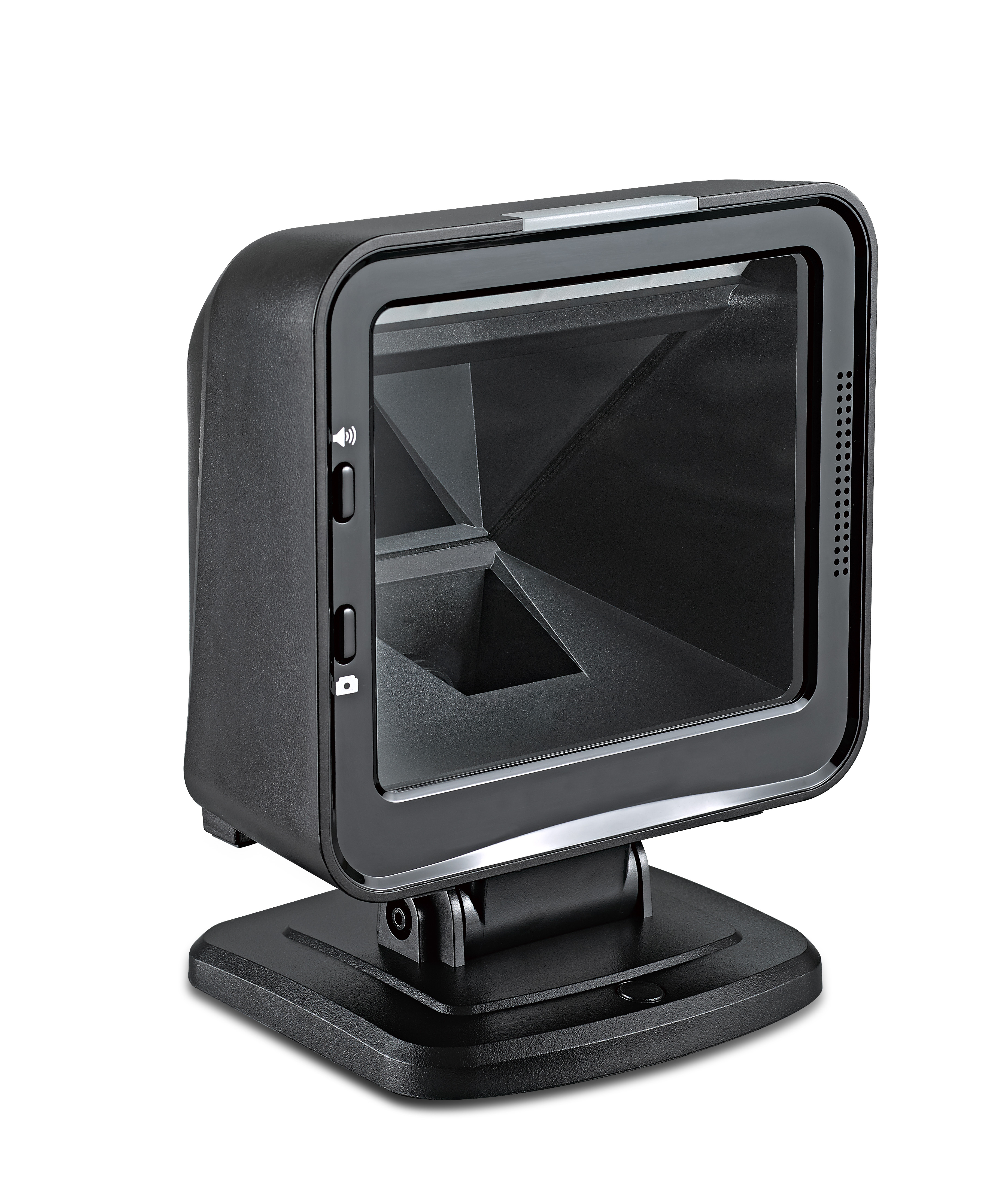

The Themis TS-1000 is a high-performance presentation scanner. Its imaging technology reads 1D and 2D barcodes from paper labels or mobile devices. The design is ideal in constrained spaces environments supported by the tiltable stand or its capability to mount the scanner head. The wide field-of-view, omni-directional scanning capability and advanced decoding software offer sweep and presentation scanning techniques for maximum productivity and throughput. Due to the all-solid-state design without laser modules or spinning motors the TS-1000 ensures high reliability and durability. The optional interfaces with either USB or RS232 allow easy integration into POS applications. A loud speaker and LED indicator offer convenient and comfortable scanning experience.

  • High-performance imaging technology to read 1D and 2D barcodes

  • Read from paper labels and mobile devices

  • Wide field-of-view, omni-directional scanning capability

  • All-solid-state design without laser modules or spinning motors for high reliability and durability

  • Loud speaker and blue/green LED for convenient user experience

Request

Optional

  • Selectable Interface: USB or RS232

ITEM

TS-1000

Dimensions 152mm (H) x 81mm (W) x 144mm (D) (without stand)
152mm (H) x 112mm (W) x 184mm (D) (with stand)
Weight 563g (without stand, without cable)
832g (with stand, without cable)
Power Adapter Input: 100-240V ~ 50/60Hz 0.4A Max
Output: 5V, 2000mA
Power Requirement

5.00 W (working), 0.40 W (standby)
1000mA (working), 80mA (standby)

Interface RS-232, USB Keyboard, USB virtual COM
Environment                              Operating:                   Storage:
Temperature:           -0°C ~ +50°C             -40°C ~ +70°C
Humidity:                5% ~ 95%                    5% ~ 95%
Drop Resistance Multiple drops of 1.5m to concrete
IP-Class IP52
Barcode Types 1D
UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128 (GS1-128), ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, China Finance, GS1 DataBar (formerly RSS) variants2D
PDF417, MicroPDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code, GS1 Composite5449000017956
Image Size

1280 x 1024 pixels

Reading Indicator Beeper, LED
Scanning Angle

± 60°, ± 54°, 360° (Skew, Pitch, Roll)

Depth of Field

1D
4 mil Code39 (9 chars) : 22 mm – 100 mm
10 mil Code39 (3 chars): 0 mm – 162 mm
13 mil UPC (6 chars) : 0 mm – 172 mm
20 mil Code39 (1 char) : 0 mm – 220 mm

2D
6.7 mil PDF417 (20 chars): 17 mm – 125 mm
10 mil QR (20 chars) : 17 mm – 125 mm
10 mil DM (20 chars) : 14 mm – 130 mm
20 mil QR (20 chars) : 0 mm – 195 mm

Cable 2m straight, RJ45 connector, field replaceable
Certification CE, LVD, IP52
Options USB, PS/2, RS-232 interface selectable
Accessories n/a
Color black

*Specifcation is subject of change without prior notice.
