Project Description

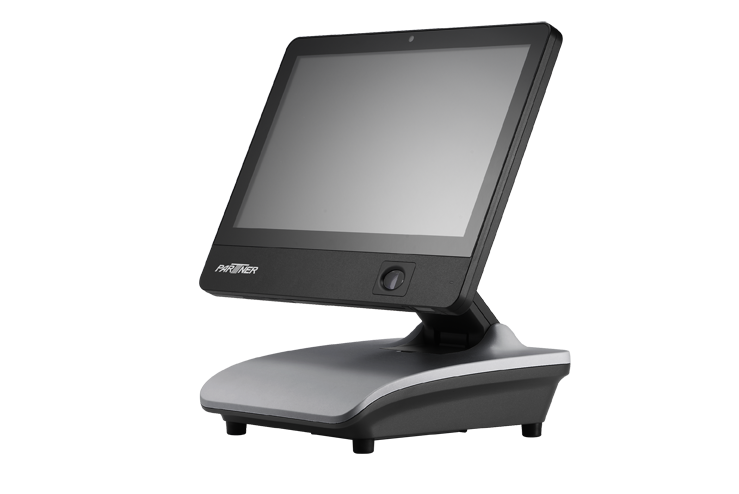

SP-3500 TOUCH POS SYSTEM

Foldable Base Meets State-of-the-Art Design

Compact Design that Exceeds Expectations

The SP-3500 is the next generation in POS design innovation for smaller spaces. The system has many high-end features found in more expensive systems, but the appeal doesn’t stop there. Sleekly designed with your choice of two compact LCD screens 11.6″ or 15″and a foldable, adjustable base, the SP-3500 series of point of sale terminals exceeds expectations in every way.

  • Foldable design; available in 2 screen sizes, (15.6” or 11.6” LCD)

  • Fanless J1900 Quad-Core

  • Bezel-free screen with projected capacitive touch (multi-touch)

Request

Optional

  • Integrated peripherals: MSR, NFC, 2D Scanner, fingerprint, IC card reader, camera

  • Mini PCIe, e.g. to support Wifi module

  Item

SP-3511

SP-3515

  Processor

  Intel® Bay Trail-D J1900 2.0G up to 2.4G, 2M Cache

  Memory

  204pin DDR3L-1333 SO-DIMM x 2, Max Support 8GB

  Display

11.6” 1366 x 768

15.6” 1366 x 768

  Touch

  Projected capacitive touch (Multi Touch)

  LAN

  10/100/1000 Gb Ethernet x 1

  Storage

  Internal 2.5″ type SATA HDD or SSD

  I/O Interface

   External 4 * COM ports [COM1~4 on rear I/O ( powered with DC +5/+12V)

    COM1~2 by BIOS selection; COM3~4 by Jumper selection)

   1 * RJ11 port supports 2 cash drawer
   1 * RJ-45 LAN port with activity and link LEDs
   1 * DC +12V input power-jack , 1 * DC +12V Output
5 * USB 2.0 1 * USB 3.0, 1 * VGA
  Expansion Options   1 * Mini PCI-e
  Speaker   2* 3W
  Optional Peripherals    3 Tracks Magnetic Reader           2D Barcode Scanner
   ** Support 3 out of 4 Peripherals coexist as below:
   Smart Card Reader                 Biometric Reader or I-Button

   RFID Reader (Factory Option)         Camera 2.0 (Factory Option)

  Operation System

  Window 7, POS Ready7, Window 8.1, Industry 8.1, Window 10, Linux (Ubuntu)
  Power Supply

  AC100~240V/DC+12V, 90 watt power adaptor

  Dimensions

302*369*298(W*H*D) 390*401*298(W*H*D)

  Operating Temp

  0°C ~ +40°C

  Storage Temperature

  -20°C ~ +60°C
  Humidity

  15%~80%

  Certification

  CE, FCC, LVD, VCCI, BSMI, Class A, CB, CCC
